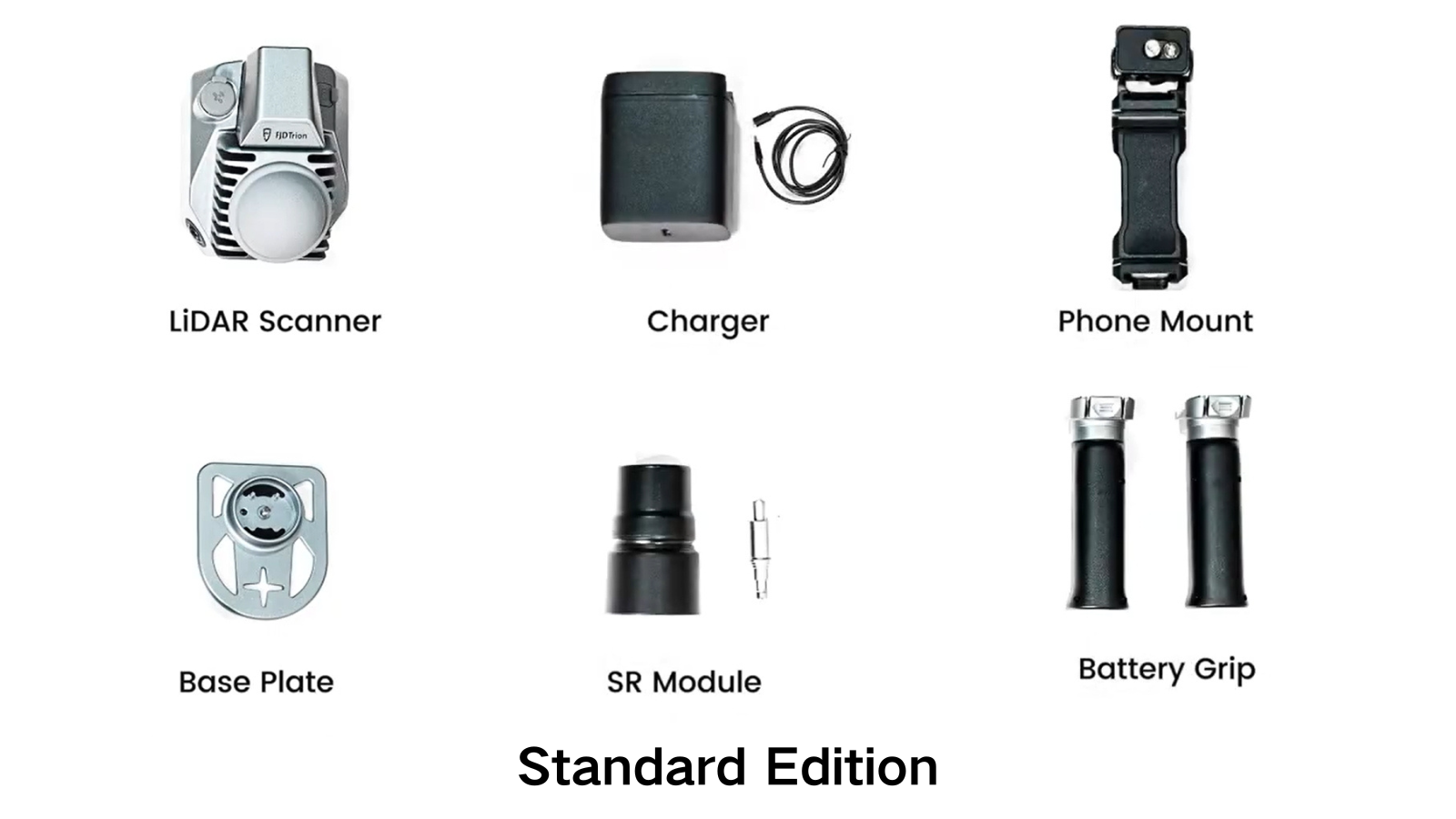

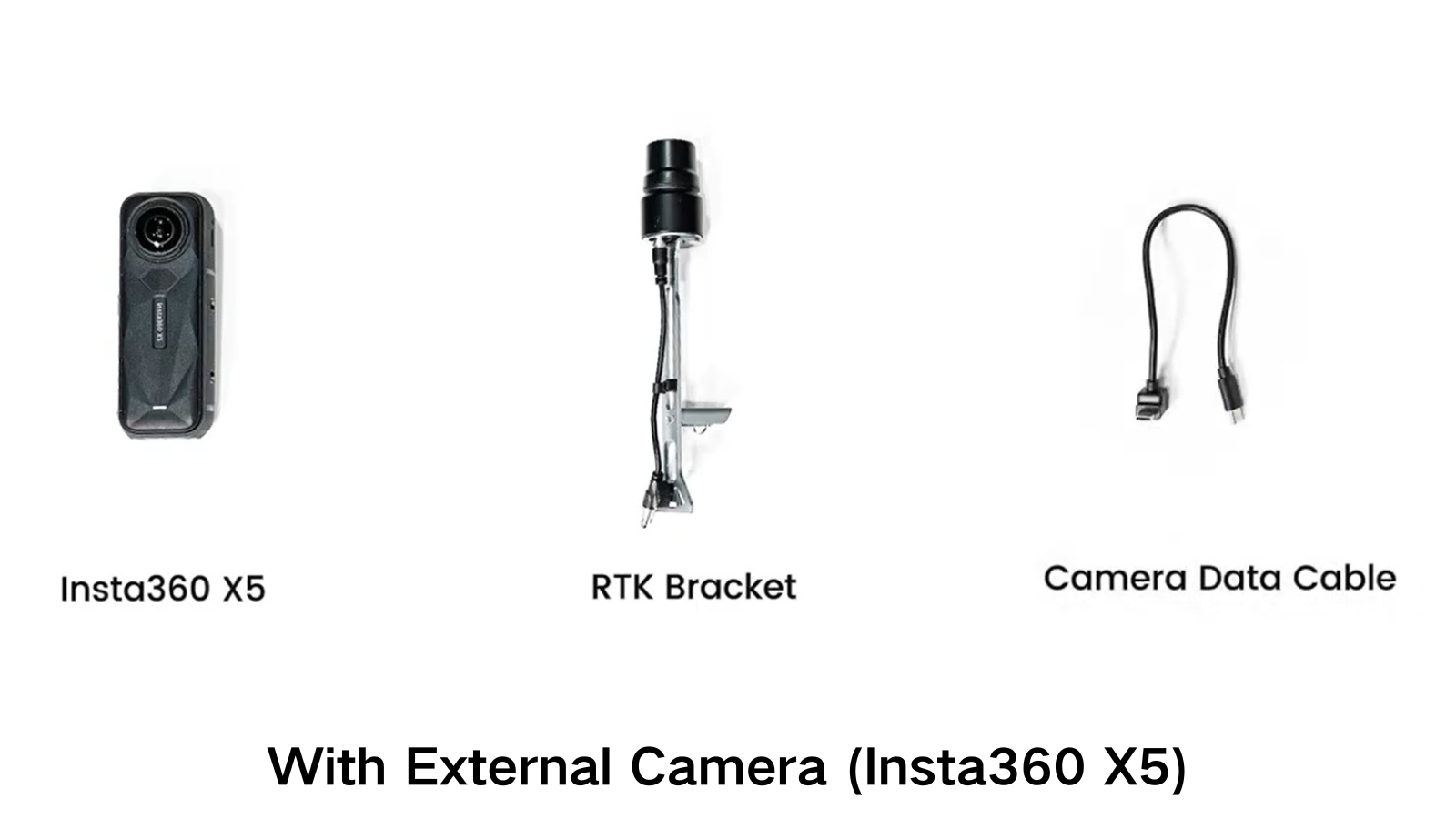

Packing List

Seamless Integration into FJD Trion Software Ecosystem

Streamline the workflow from point cloud capture, data processing, to deliverable sharing, giving you a smooth project experience.

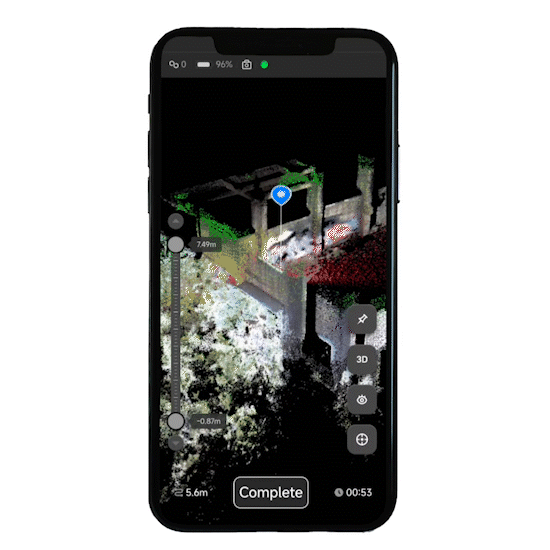

FJD Trion Scan

Data collection
Real-time app control
Scan file management

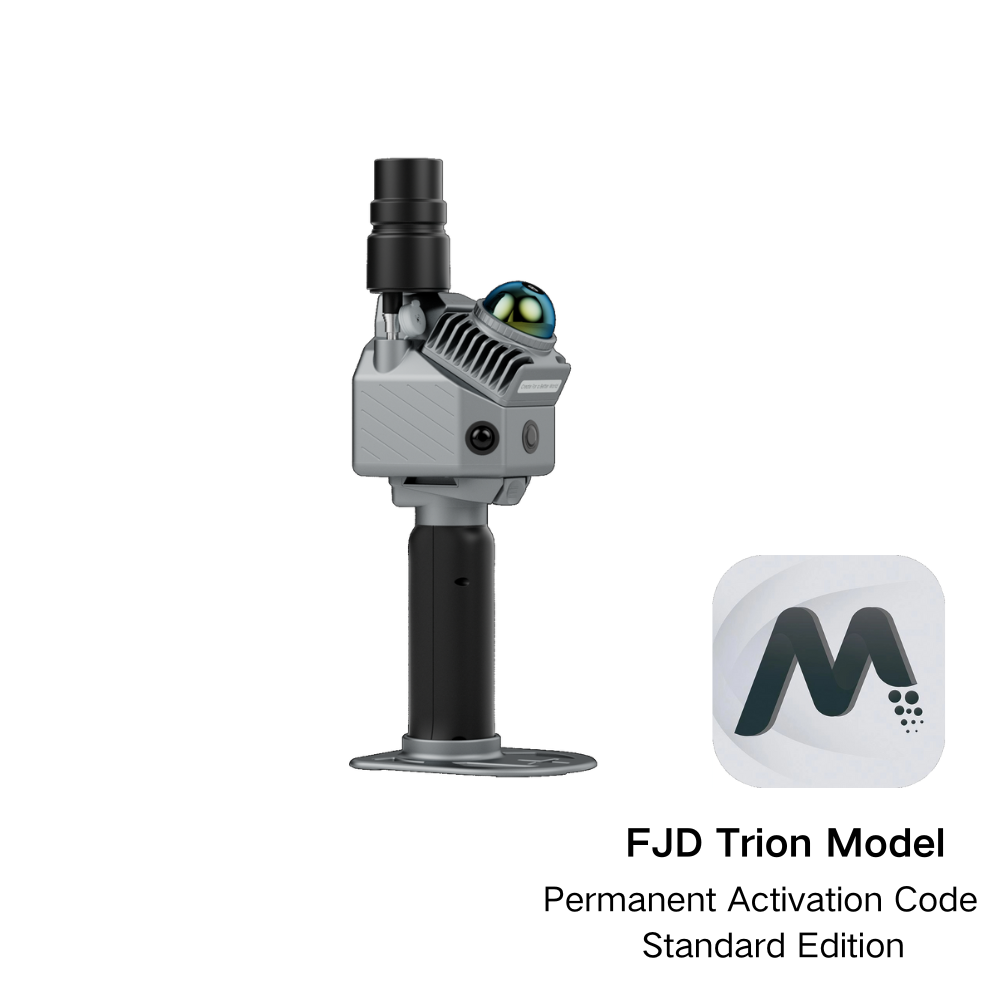

FJD Trion Model

Data processing
Generate construction, forestry,
mining reports, and more

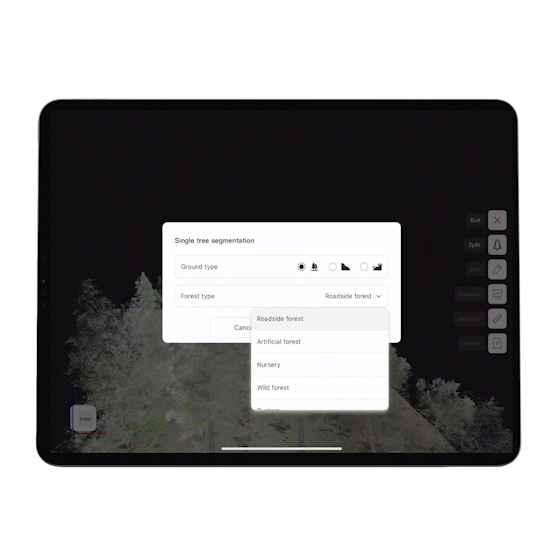

FJD Trion Model for Tablets

Generate Deliverables
iPad and Android support
On-site post-processing and preview

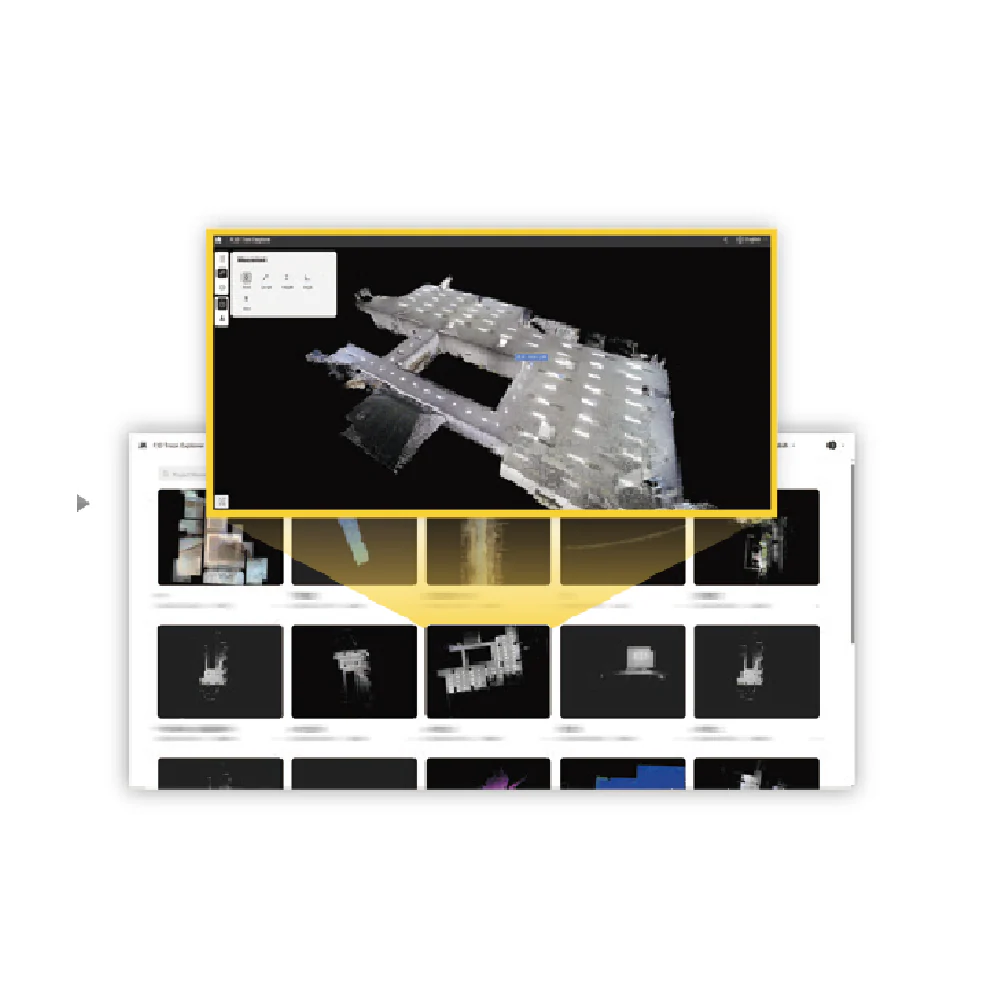

FJD Trion Explorer

Share and collaborate
Share online and support
collaboration across teams.

Specifications

LiDAR
Speed 200,000 pts/s
FOV 360° x 59°
Range 40 m @ 10% reflectivity; 70 m @ 80% reflectivity
Safety Level Class 1, eye safety
Hyperdense+ Support
Continue Scanning Support
Accuracy
Real-Time Point Cloud Accuracy Relative: 2 cm; Absolute: 5 cm
Post-Processed Point Cloud Accuracy Relative: 1 cm; Absolute: 3 cm
Built-in Camera
FOV (Front Camera) 70°
FOV (Side Camera) 280°×149°
Resolution (Front Camera) 2 MP
Resolution (Side Camera) 2 x 12 MP
Visual SLAM Support
Image Export Support
Image Format .jpg
External Camera
Supported Models Insta360 X5
360 Video Resolution (Insta360 X5) 8K: 7680 x 3840 @ 30 / 25 / 24 fps
System Parameters
Dimensions 110×106×280 mm
Weight 700 g (excludes battery, external camera and RTK module); 1200 g (includes battery and RTK module); 1500 g (includes battery, external camera and RTK module)
Storage 512G (1TB expandable)
Operating Temperature -20℃ - 50℃
Storage Temperature -40℃ - 60℃
Ingress Protection IP 54
Data Export Wireless Network, USB Type-C, USB Flash Disk
Point Cloud Format .las / .ply / .pts / .e57
Electrical Specifications
Battery Life 4H (with 1 set of 2 batteries, include RTK module, exclude external camera); 3 H (with 1 set of 2 batteries, include RTK module and external camera)
Power Supply DC Handheld Battery
Power Consumption 15 W (exclude external camera); 21 W (include external camera)
Charger 67W Fast Charging
Simultaneous Dual-Battery Charging Support
GNSS
BDS B1I / B2I / B3I / B1C / B2a / B2b
GPS L1 C/A / L1C / L2P (Y) / L2C / L5
GLONASS G1 / G2 / G3; Galileo: E1 / E5a / E5b / E6
QZSS L1C/A / L1C / L2C / L5
RTK Accuracy H: 8 mm + 1 ppm RMSV; 15 mm + 1 ppm RMS
Positioning Rate 10 Hz
PPK Support
