AI can generate a new look for a room in seconds. The harder part is making sure the concept still belongs to the room you actually have.
When an AI design starts from a single photograph, it may reinterpret more than finishes and furniture. Windows can move. Walls can appear wider. Ceiling heights can change. A doorway may disappear because the model is creating a convincing image, not documenting existing conditions.
A geometry-first workflow takes a different approach. Capture the room as a floor plan, textured mesh or measurable point cloud. Keep that spatial record available during concept development. Then use AI to explore the design without quietly redefining the building.
Why AI concepts drift from real rooms
An interior photograph contains useful visual information. It shows color, texture, furniture and light. What it does not provide reliably is a complete account of the space.
A photo may hide the return of a wall behind a sofa. Perspective can make one end of the room look wider than the other. The camera may never show a ceiling transition, a second doorway or the relationship with an adjoining hall. When those conditions are missing, an AI tool may fill the gaps with something visually plausible.
That can be useful for inspiration. It becomes a problem when a client interprets the image as a design that will fit.
Interior designers therefore need to separate two jobs:
Document the room: Record walls, openings, levels, ceilings, fixed elements and connections between spaces.
Explore the design: Test materials, furniture, lighting, color and spatial ideas against that documented context.
AI is better suited to the second job. Reality capture strengthens the first.
What makes an AI concept geometry-grounded?
A geometry-grounded workflow uses measurable spatial data as the reference for AI-assisted design. The designer begins with a floor plan, mesh or point cloud captured from the real space. The AI no longer has to infer the entire room from one view.
The scan does not make every AI image accurate automatically. It gives the designer a dependable reference for deciding what the AI may change and what it should preserve.
点击图片可查看完整电子表格
The distinction allows a concept to remain imaginative without becoming misleading.
Choose the right capture route
FJD Trion offers two workflows for interior design. V4e Go supports both, while C1 is purpose-built for the focused indoor floor-plan route. Start with the deliverable your team needs.
点击图片可查看完整电子表格
C1 can capture up to 200 m² (2,153 ft²) in about three minutes under stated conditions. FJD Trion internal tests found up to 80% less manual drafting on selected interior design projects compared with conventional site measurement and manual CAD. Results vary by project and workflow.
V4e Go records 154,600 points per second and supports both the Creative floor-plan workflow and the broader Model Web workflow. Its published post-processed point-cloud specification is up to 1 cm relative accuracy under laboratory conditions. Actual results depend on the site, operator and processing workflow.
From room scan to AI concept
1. Define the design question
Start with the decision, not the rendering style.
Are you testing whether a living room can support two seating zones? Does the client want to compare a warm, layered scheme with a quieter biophilic direction? Are you exploring a kitchen refresh that keeps the openings and major services in place?
Clarify which conditions are fixed and which are open to change. This tells the scanning operator which areas must be captured and verified carefully.
2. Prepare the room
The space does not need to be empty, but access matters. Open internal doors where permitted. Move small obstructions away from important corners. Note mirrors, glazing, reflective finishes and areas concealed by large furniture.
If the design depends on a window, cabinet run, stair or ceiling transition, make sure the feature is visible from more than one position during capture.

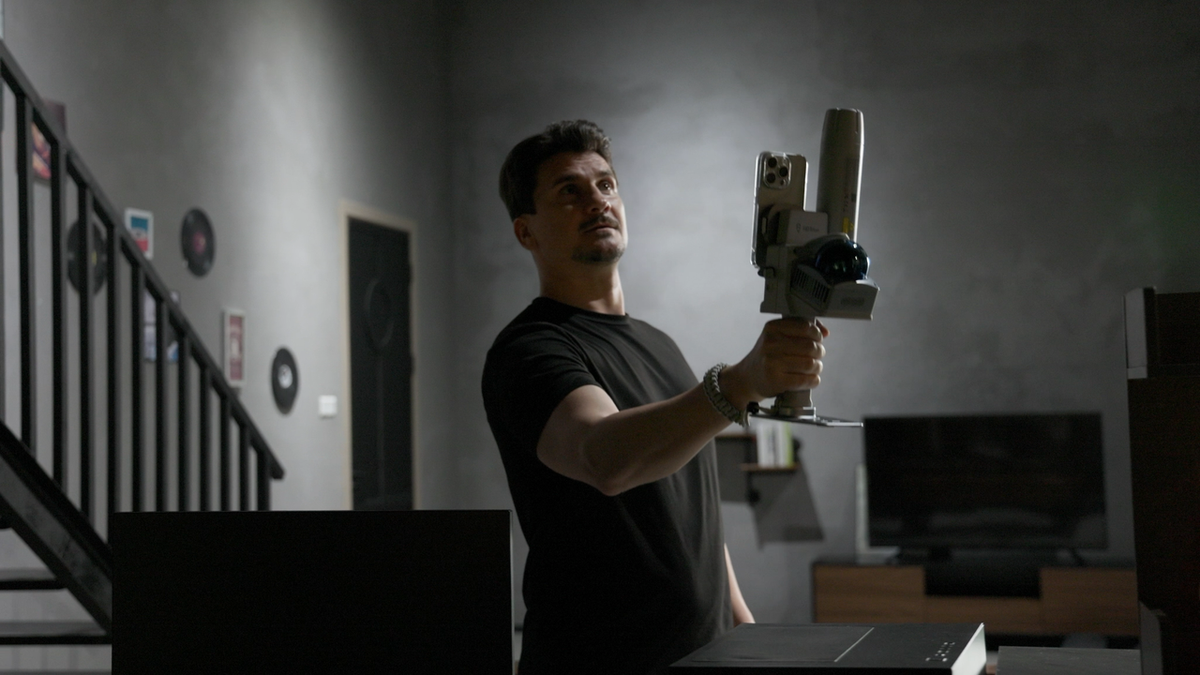

3. Capture with C1 or V4e Go
Use C1 when a focused indoor floor plan is the main requirement. Walk the space with the Creative app, capture connected rooms and use the built-in laser to record key dimensions where needed. C1 records 230,400 points per second across a 0.1–6 m (0.3–19.7 ft) range.
Use V4e Go with the Creative app when the brief calls for an indoor floor plan. Use FJD Trion Scan when it calls for a broader 3D record and the Model Web AI-rendering workflow. Walk steadily through adjoining spaces while covering wall junctions, openings, floor edges, ceiling changes and fixed elements. Its 360° horizontal field of view helps build a connected spatial record.
4. Check the capture onsite
Do not wait until the room is no longer accessible to discover a gap.
With C1 in the Creative app, review the generated floor-plan draft, check highlighted gaps and add built-in laser measurements to key areas. With V4e Go, check scan coverage in the Creative app before upload. When using FJD Trion Scan, inspect the live point cloud for missing rooms, incomplete wall sections and openings that need more coverage.
Before leaving, ask:
- Is every required room present and connected?
- Are important doors and windows visible?
- Did the capture include ceiling conditions that affect the design?
- Are irregular or partially obscured walls represented clearly enough to review?
- Have fabrication-critical dimensions been verified to the required tolerance?
5. Build the spatial reference
For a Creative workflow project captured with C1 or V4e Go, upload the capture to Creative Portal. Use the captured 3D data as the reference while creating or refining walls, doors and windows. Then create or export the floor plan, DXF, report or 3D geometry needed for design work.
For a V4e Go project using the Model Web workflow, upload the scan for browser-based point-cloud processing, measurement and 3D deliverables. Supported results include DXF and PDF floor plans, OBJ models, 3DGS models, virtual room walkthroughs and AI-generated interior renderings.
Before exploring design options, confirm that walls, openings, fixed elements and room relationships agree with the conditions observed onsite.
6. Generate concepts from captured context
The V4e Go and Model Web route directly supports AI-generated interior renderings. Model Web uses the captured room geometry as the structure for rendering, helping the concept retain the main spatial relationships. Generated finishes, furniture and architectural details still require review.
Keep each prompt tied to the design brief and the geometry the project intends to retain.
For example:
For C1 projects, Creative Portal provides the refined floor plan and 3D geometry for use in compatible visualization and AI design tools.
Generate a small set of meaningfully different directions. This makes client feedback easier to interpret than dozens of disconnected images.
7. Validate the image against the scan
An AI rendering is a proposal, not evidence. Compare it with the mesh, point cloud, floor plan and verified dimensions.
- Check whether:
- Windows and doors remain in their actual positions
- The apparent room proportions still match the capture
- Furniture leaves usable circulation space
- Built-ins fit the available wall length and height
- Ceiling features and level changes are represented honestly
- The image introduces construction work that has not been discussed
If the concept changes a fixed condition, regenerate it or label the change as proposed work.
8. Continue into design development
Once the client selects a direction, return to the measurable project record. Use the floor plan, mesh, point cloud or 3D model as the reference for layout development, coordination and documentation.
The rendering guides visual intent. The captured geometry guides what needs to fit.
Why a 3D record beats photos alone
Photos remain valuable for finishes, objects, damage and visual details. Their limitation is that each image shows the room from one viewpoint.
A C1 floor plan and 3D geometry, or a V4e Go point cloud and 3D model, record relationships across the space. The team can revisit the room, understand how one area connects to another and check supported conditions in the processing environment. That gives designers, visualizers, contractors and clients a stronger common reference, especially when they cannot all attend the site visit.
Where the workflow adds value
Early client presentations
Show distinct directions while keeping the conversation tied to the client's actual room.
Renovation planning
Preserve a reusable record of existing conditions before finishes, fittings or partitions begin to change.
Irregular and connected spaces
Capture angled walls, stairs, adjoining rooms and relationships that are difficult to explain with a single photograph.
Retail, hospitality and workplace concepts
Give distributed design and approval teams shared access to the existing space while visual options are being developed.
Indoor projects with outdoor context
V4e Go supports both indoor and outdoor capture. An optional compatible GNSS receiver can add positioning for outdoor work that requires georeferenced context. GNSS is not needed for a standard non-georeferenced indoor scan.
What the workflow does not replace
A LiDAR scan and an AI rendering do not replace design judgment, detailed surveys or construction documentation.
The scan describes visible and captured conditions. It cannot reveal concealed services, hidden structure or material build-ups behind finished surfaces. Furniture and other obstructions can also conceal geometry.
AI images may invent joints, fixtures, reflections and details that would not work as shown. Do not use them by themselves to order materials, fabricate millwork, demonstrate regulatory compliance or direct construction.
Use the scan to strengthen the record, the AI image to explore an idea and the appropriate professional documentation to deliver the work.
Frequently asked questions
Can AI redesign a room from a 3D scan?
Yes. Model Web can use captured room geometry as the structural basis for AI interior rendering. Check the resulting image against the scan and 3D record because generative tools can still alter or invent architectural details.
Should interior designers choose C1 or V4e Go?
Both products support the Creative app and Creative Portal for indoor floor plans. Choose C1 when floor plans, onsite gap checks and built-in laser measurements are the main priorities. Choose V4e Go when you also need a broader point cloud, Model Web 3D outputs, AI interior rendering or connected indoor-and-outdoor capture.
Which workflow supports AI interior renderings?
V4e Go with FJD Trion Scan and Model Web directly supports AI-generated interior renderings. Model Web uses the captured 3D geometry as the room structure. C1 and Creative Portal provide floor-plan and 3D outputs that can support compatible design and visualization workflows.
Is an AI rendering dimensionally accurate?
Do not treat an AI rendering as a dimensionally reliable drawing. Use the captured geometry, verified measurements and appropriate floor-plan or CAD deliverables for dimensional work.
Give AI a real room to work with
The best AI interior concept is not simply the most photorealistic image. It helps a client see a meaningful possibility without losing sight of the space they own.
Choose C1 for a purpose-built indoor floor-plan workflow. Choose V4e Go when you want the same Creative floor-plan route plus a second path to broader 3D and AI-rendering work in Model Web. Capture the existing room first, keep its geometry available while ideas evolve and use AI to explore visual directions with a clearer spatial foundation.
